Express Robot Cell
ROBOTIZED BENDING CELLS
Minimum footprint. Maximum potential.
[:it]default[:]
COMPACT
Minimized footprint for installation even in limited spaces.
FLEXIBLE

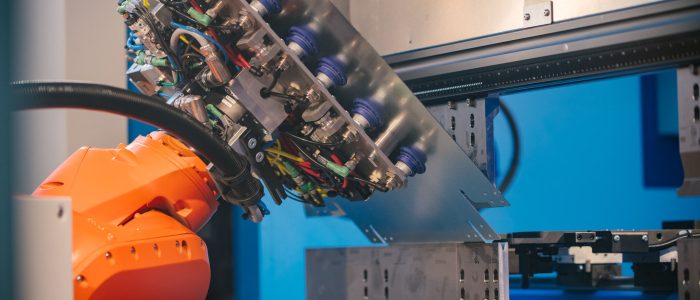

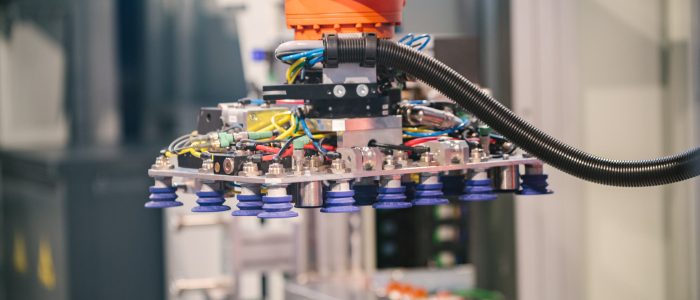

Capable of handling a wide variety of parts with a single set of universal standard grippers.
PRODUCTIVE
Fast movements and short cycle times enabled by the compact size.
PLUG & PLAY
All robot cell devices (including the robot itself) are mounted on a single platform, dividing the Express Robot Cell into just two main elements (eP + robot and peripheral devices).
SPECIFICS
OVERVIEW

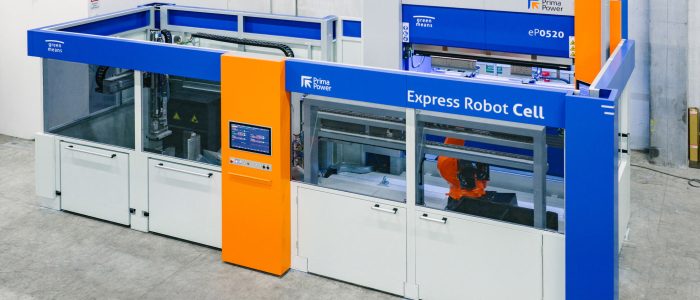

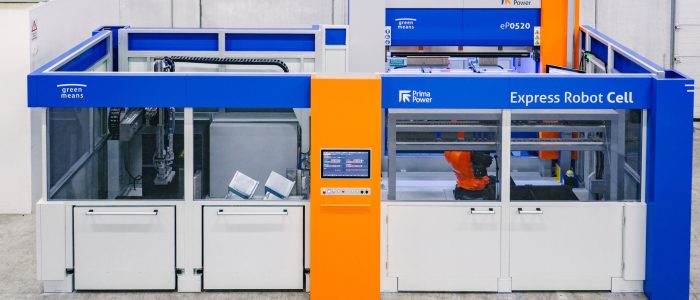

The Express Robot Cell by Prima Power is a compact robotized bending cell that combines high performance with minimal space requirements.
It includes:

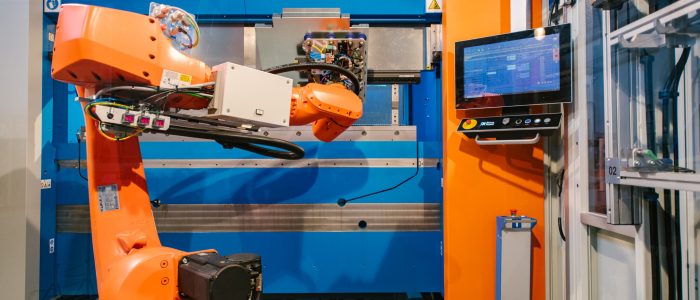

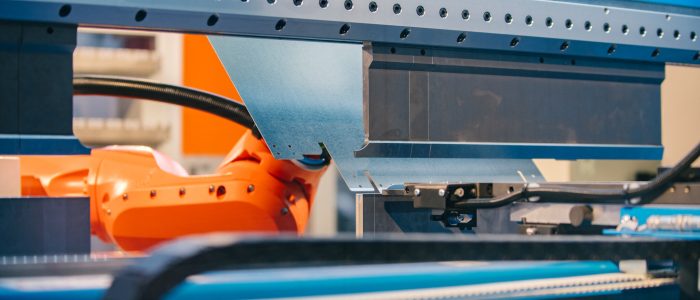

- a servo-electric press brake eP 0520 (55 tons, 2320 mm bending length),

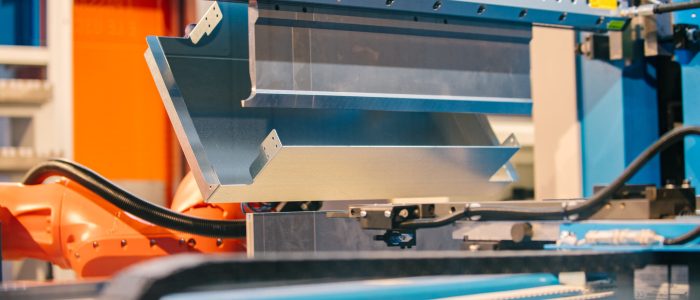

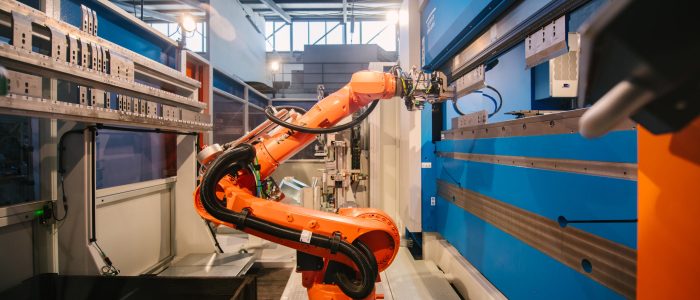

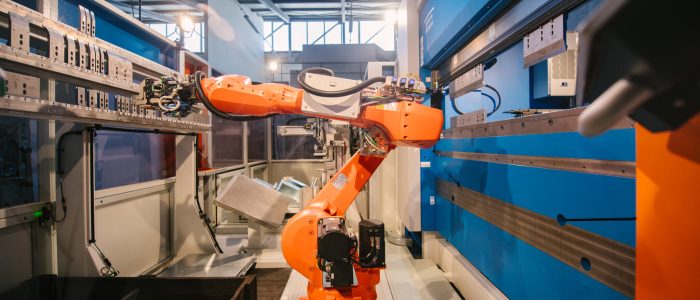

- a 6-axis anthropomorphic robot for complete part handling,

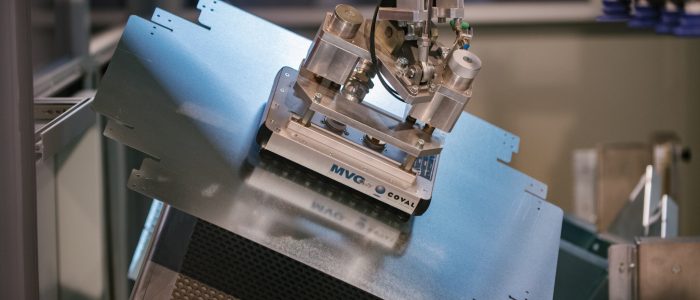

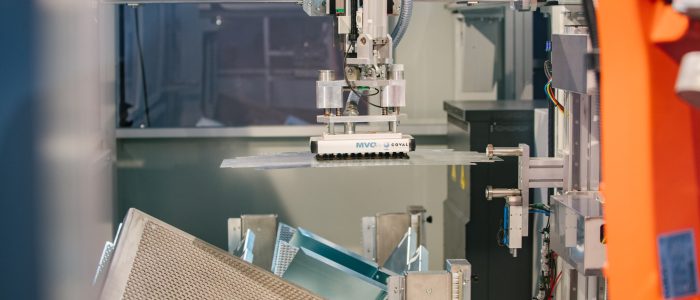

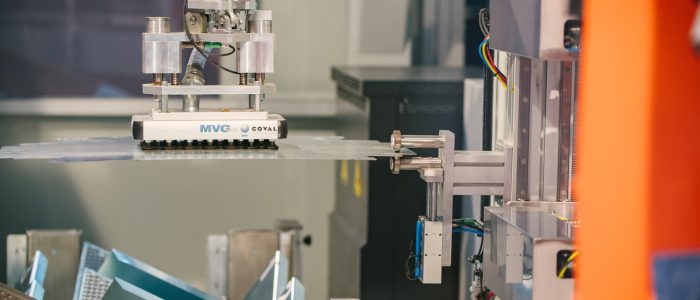

- a 3-axis Cartesian loader for masked-time part preparation,
- a plug-and-play system with all components preassembled on a single metal platform.
Its compact design enables fast movements, short cycles, and high productivity, thanks to the simultaneous cooperation between the robot and the loader, which optimizes overall efficiency.za l’efficienza complessiva.
MACHINE FEATURES
The Express Robot Cell can be integrated with FMS storage systems such as Prima Power’s Night Train, allowing continuous and automated production.
The stand-alone version can be easily upgraded to connected solutions, with automatic loading and unloading even via AGVs (Automated Guided Vehicles).
Built on a plug-and-play metal platform, it ensures quick installation and easy transport.
It is ideal for HVAC, automotive, metal furniture, and industrial components sectors, handling small to medium-sized parts of varying complexity.
Thanks to Prima Power’s know-how, the cell is scalable, evolving from a stand-alone unit into a fully integrated robotic production system.
TECHNICAL SPECIFICATIONS
| Minimum and maximum sheet size, single cart | 800 x 600 mm300 x 400 mm |
| Maximum stack height, single cart for larger parts | 300 mm |
| Maximum sheet weight | 15 kg |
| Multistack unit – maximum sheet size (4 carts for smaller parts) | 300 x 400 mm |
| Multistack unit – minimum sheet size (L = Length x W = Width) | 130 x 40 mm, OL= 100-130 mm se W>70 mm |
| Multistack unit – maximum stack size (4 carts for smaller parts) | 150 mm |
| Cart entry dimensions | 1200 x 800 mm |
| Unloading pallet & container dimensions | 1200 x 800 mm |
| Unloading pallet & container dimensions | 610 mm |
| Discharge container – maximum collar height | 610 mm |
| Discharge belt width | 500 mm |
